The Double Flange Cross Groove Adapter Shaft is a high‑precision mechanical transmission conversion component widely deployed in automation equipment, robotic assemblies, motion control systems, servo motor connection, testing fixtures and precision mechanical devices. Designed to realize stable torque transmission, shaft‑position conversion and modular connection between different shafts and power units, this double flange cross groove adapter shaft solves common engineering challenges such as shaft diameter mismatch, connection offset, insufficient positioning accuracy and unstable power output during mechanical assembly. Manufactured with strict CNC turning and milling procedures, this adapter shaft delivers excellent coaxiality, reliable torque‑carrying performance and convenient installation, serving as an indispensable intermediate connecting part for modern precision machinery.
We follow ISO 2768‑mk general mechanical tolerance standards for the dimensional processing of the double flange cross groove adapter shaft. This recognized industrial standard ensures stable repeat accuracy for batch‑produced workpieces and reduces assembly errors caused by dimensional deviation.

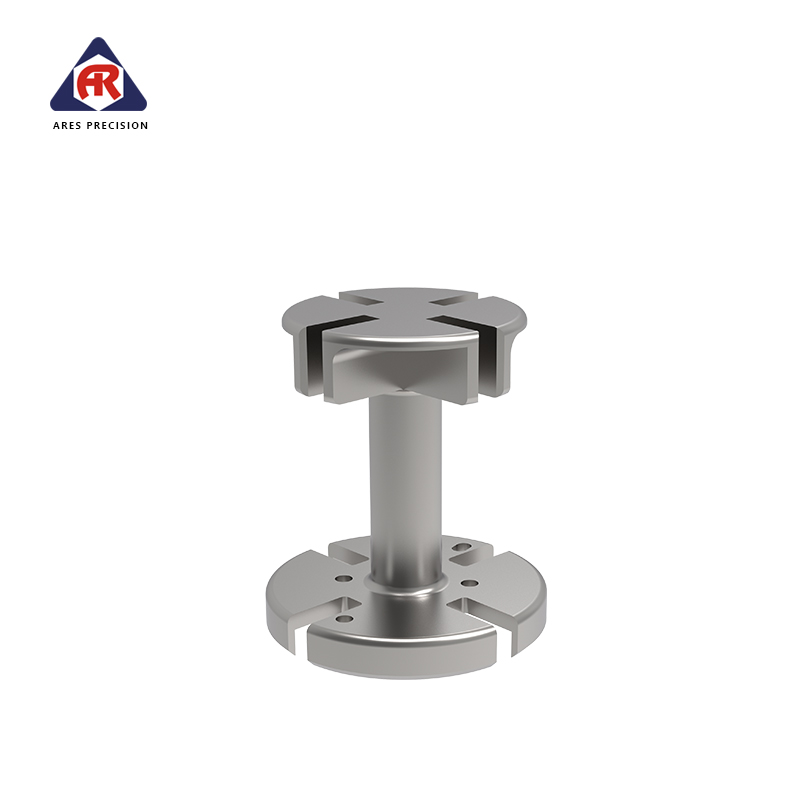

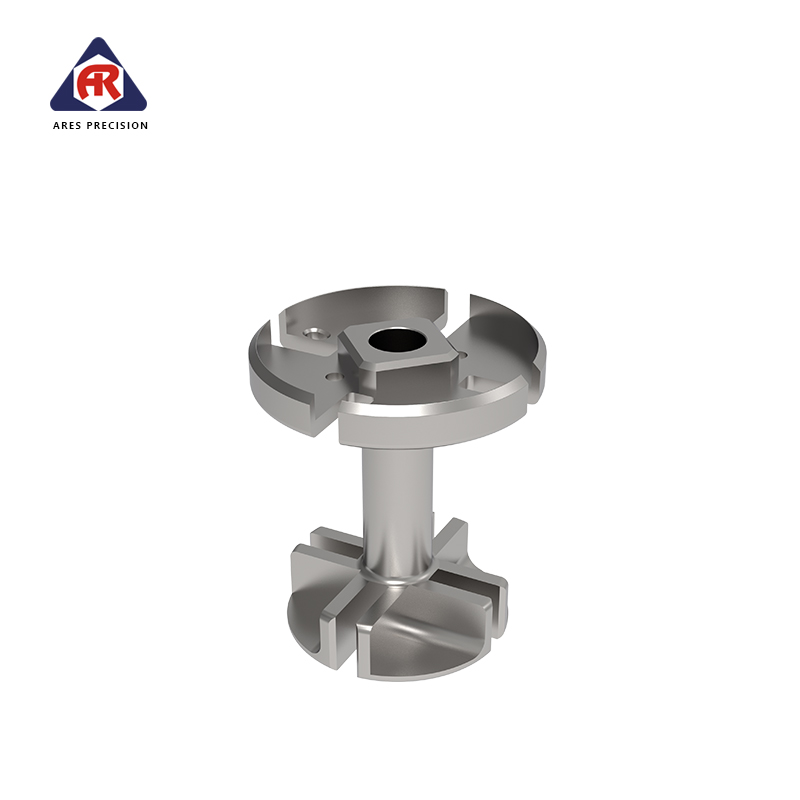

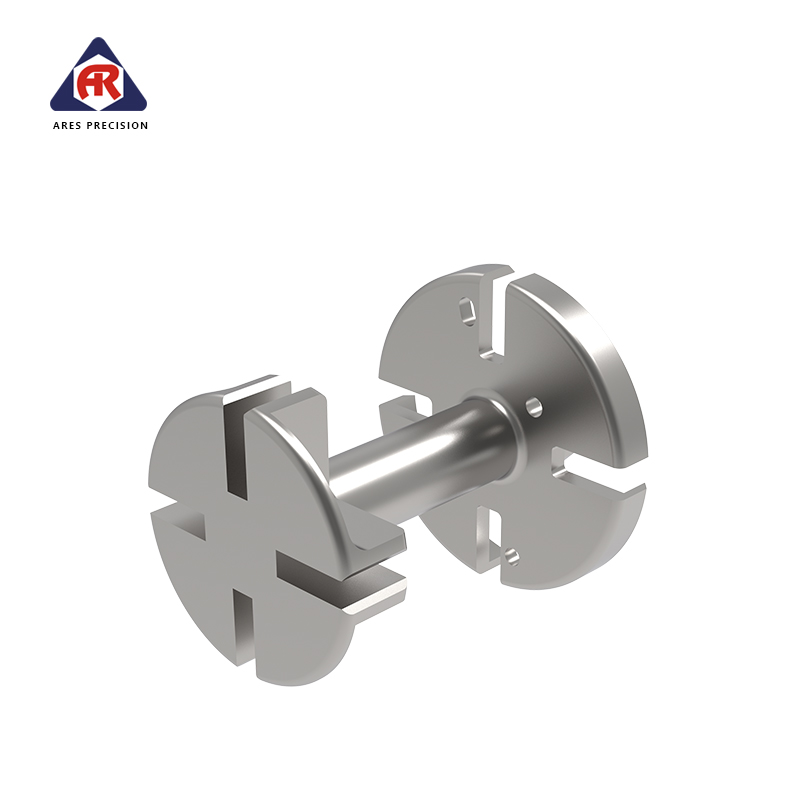

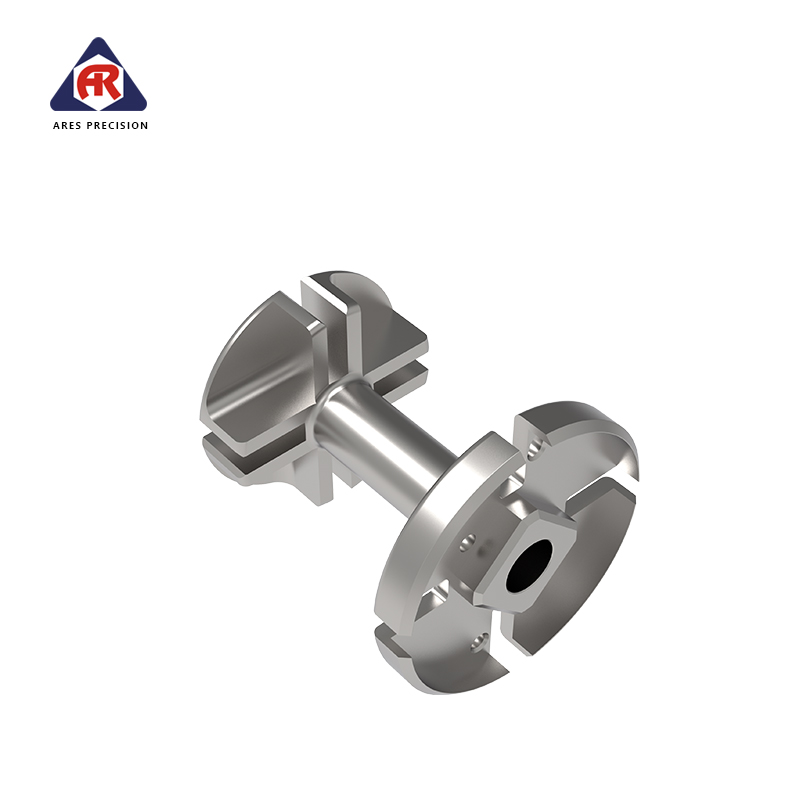

The double flange cross groove adapter shaft gets its name from its distinctive double‑flange layout and internal cross‑groove structure. Two symmetric flange end faces provide large‑area contact planes for bolt fastening, which greatly improves fastening stability and avoids loose connections under frequent rotation or vibration working conditions. The cross‑groove inner cavity adopts precision milling forming. The cross‑groove structure can effectively fit the mating shaft end, prevent relative circumferential slipping during torque transfer, and realize accurate circumferential positioning without additional flat‑key processing for partial matching shafts.

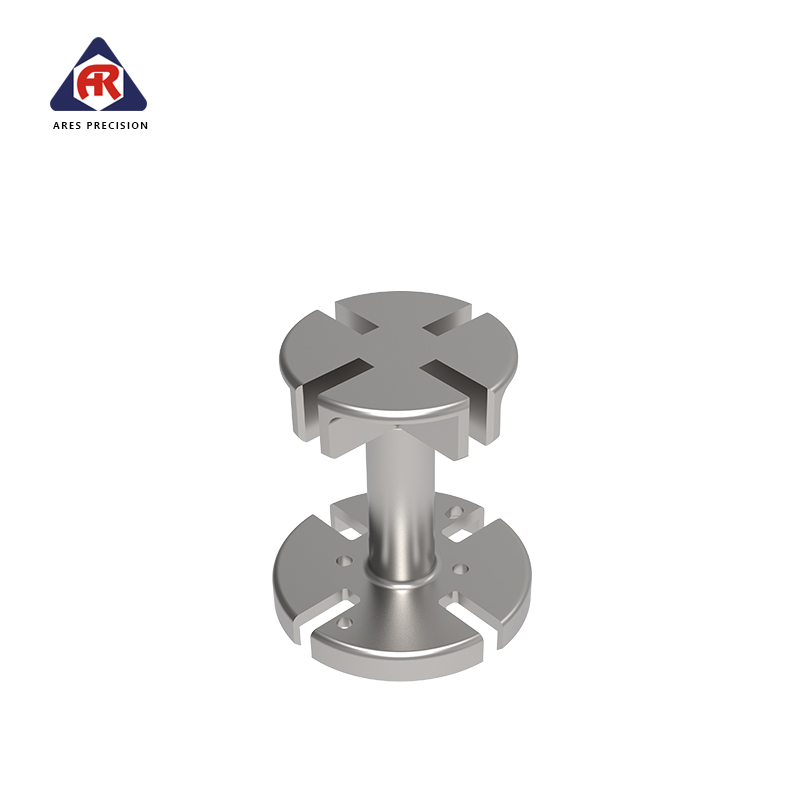

Double Flange Cross Groove Adapter Shaft
Different from ordinary straight‑bore adapter sleeves, the cross‑groove design allows slight radial and angular compensation during operation. It can absorb tiny installation misalignment errors generated during equipment assembly, lower additional bearing load caused by coaxial deviation, and extend the service life of connected motors, bearings and reducers. Each flange is pre‑processed with evenly distributed mounting bolt holes. Users can directly use standard fasteners to lock the shaft onto mating flanges, eliminating secondary drilling or modification on site. All sharp edges are fully deburred to avoid scratching operators and prevent metal debris from falling into precision transmission assemblies.
High‑quality raw material selection lays the foundation for stable performance of the double flange cross groove adapter shaft. Standard versions adopt high‑strength 45# steel or 6061‑T6 aluminum alloy. Steel material options feature high hardness, strong torsion resistance and outstanding load‑bearing capacity, suitable for high‑torque, heavy‑load continuous‑running working scenarios. Aluminum alloy versions are lightweight with good anti‑oxidation capacity, ideal for light‑duty motion modules where overall weight control is critical.
Whole‑piece CNC turning and composite milling processing guarantees high coaxiality of double‑flange end faces and cross‑groove inner hole. Key fitting dimensions are strictly controlled within fine tolerance ranges. Thread holes and mounting holes maintain high position accuracy. Heat treatment is optional for steel‑material versions to enhance surface hardness and wear resistance. Multiple surface finishing treatments are available. Black oxidation, hard anodizing and sandblasting can be selected according to usage environment. Surface treatment will not damage the precision size of cross‑groove and flange mounting holes, maintaining original assembly accuracy.
The double flange cross groove adapter shaft supports flexible non‑standard customization services. Besides standard off‑the‑shelf specifications, we can adjust overall shaft length, flange outer diameter, cross‑groove inner size, bolt hole distribution and shaft body thickness according to customers’ 2D drawings or 3D models. Additional functions such as positioning pin holes, anti‑rotation structures and avoidance notches can be added upon assembly demands. Whether you need small‑batch prototype samples for equipment research and development or mass‑produced components for formal production lines, stable‑quality machining solutions can be provided.
This adapter shaft has wide application coverage across many mechanical fields. It is frequently used for connecting servo motors, stepping motors, reducers and transmission shafts on automated production equipment. It also acts as a switching connector for robot joint accessories, laboratory test jigs, automated testing stations and small‑size transmission mechanisms. Thanks to its double‑flange fastening structure and anti‑slip cross‑groove, it simplifies mechanical design work for engineers, shortens equipment assembly cycles and reduces later‑period failure risks brought by unstable shaft connection. If you are searching for dependable precision shaft conversion parts for your motion‑control machinery, this double flange cross groove adapter shaft will be your cost‑effective selection.
A: We supply 45# steel for heavy‑torque working conditions and 6061‑T6 aluminum alloy for lightweight‑demand scenarios.
A: The cross‑groove structure allows minor misalignment compensation to reduce extra load for matched power components.
A: Yes. Custom dimensions, groove sizes and flange hole layouts are supported. Please provide technical drawings for quotation.
A: Options include black oxide for steel parts, hard anodizing and sandblasting for aluminum versions.
