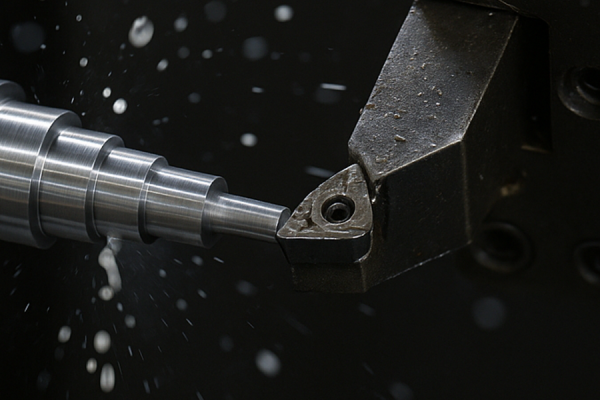

What is Step Turning?

Step turning is a specialized turning process in CNC machining that enables the creation of stepped or tapered features on cylindrical workpieces. Unlike conventional turning, which primarily focuses on removing material from a single cylindrical surface, step turning introduces a multi-dimensional approach to produce intricate, precise profiles and geometries on parts.

The key difference between traditional turning and step turning is the ability of the step-turning process to handle multiple diameter reductions within one continuous operation. This allows for the creation of parts with steps, shoulders, grooves, and other complex features in a single machining cycle. Step turning is particularly beneficial when manufacturing parts that require tight tolerances and fine surface finishes on multiple features.

Why is Step Turning Important in Precision Manufacturing?

Precision is crucial in manufacturing industries where parts must fit perfectly and operate seamlessly within tight tolerances. Step turning addresses this challenge by allowing the production of parts with complex geometries, such as shafts, valve stems, and spindles, that traditional turning processes may struggle to achieve in a single setup.

The importance of step turning in precision manufacturing can be attributed to several factors:

  1. Reduced Setup Time: Step turning often eliminates the need for multiple setups, making it possible to achieve multiple features in a single operation. This not only reduces cycle times but also minimizes the risk of errors that could occur during part handling between different operations.

  2. Enhanced Part Integrity: By performing all machining operations in a single setup, step turning improves the overall part integrity. This results in higher accuracy and ensures that critical dimensions are maintained, preventing issues like misalignment or dimensional drift that could occur with traditional turning processes.

  3. Cost Efficiency: Step turning reduces material waste by removing only the required amount of material, leading to better material utilization. Additionally, fewer setups mean reduced labor costs and less time spent on tooling changes, all of which contribute to a more cost-effective manufacturing process.

What are the Key Advantages of Step Turning in CNC Machining?

Step turning offers several advantages that make it a popular choice for complex machining projects. Some of the key benefits include:

1. Precision and Accuracy

Step turning ensures that each part is machined to the exact specifications, with tight tolerances maintained throughout the process. CNC step turning machines are equipped with high-precision tooling and advanced controls, enabling manufacturers to achieve extremely accurate and repeatable results.

2. Versatility

One of the biggest advantages of step turning is its versatility. The process can handle a wide range of materials, including metals like aluminum, stainless steel, and titanium, as well as plastics and composite materials. Additionally, step turning can be used to create various shapes, from simple steps and shoulders to complex contours and profiles.

3. Complex Geometries in One Operation

Traditional turning methods may require multiple setups to produce parts with different diameters or features. In contrast, step turning allows for the production of parts with several features—such as threads, grooves, and tapered surfaces—in a single operation. This capability is essential for industries that demand intricate geometries, such as aerospace, automotive, and medical device manufacturing.

4. Improved Surface Finish

Step turning offers the ability to produce high-quality surface finishes with minimal post-processing. The precise control over cutting parameters results in smooth surfaces with reduced tool marks, which can be particularly important for parts that require a clean, polished look, such as medical implants or aerospace components.

5. Reduced Tool Wear

With step turning, the cutting tools experience less wear compared to traditional turning methods because the tool is engaged with the material for shorter periods during each pass. This reduces the frequency of tool changes, helping to increase the overall efficiency of the machining process and extend tool life.

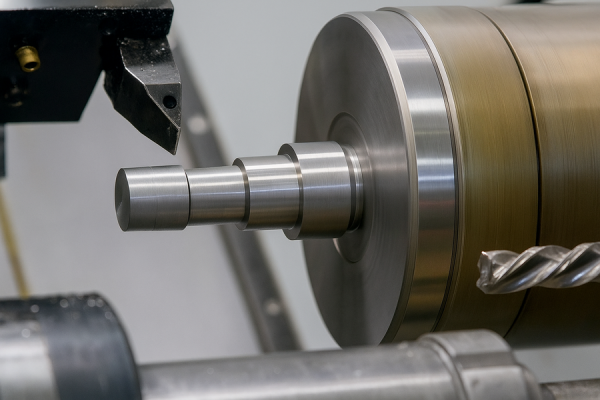

How Does Step Turning Work in CNC Machining?

Step turning is typically performed on a CNC lathe, which is equipped with a rotating workpiece and a stationary cutting tool. The lathe is controlled by a CNC (Computer Numerical Control) system, which precisely manages the movement of the tool and the workpiece according to the programmed design.

The key steps in the step-turning process include:

1. Part Setup

The workpiece is securely mounted onto the CNC lathe, and the necessary cutting tools are set up in the tool turret. The lathe operator or CNC programmer inputs the program that defines the cutting paths, cutting speeds, and tool changes needed for the part.

2. Machining the First Step

The lathe begins the turning process by machining the first step or shoulder on the workpiece. The tool follows the programmed path to remove material from the outer surface of the workpiece to create the desired step.

3. Tool Change and Adjustments

Once the first step is complete, the CNC system automatically changes tools to a different cutting tool suited for the next step. The tool may be adjusted to machine additional features such as grooves, radii, or tapers, depending on the part design.

4. Multiple Steps and Features

The process continues with the lathe moving along the programmed toolpaths to machine multiple steps and features on the workpiece. Each feature is created in a precise order to ensure proper dimensional accuracy and surface finish.

5. Finishing and Quality Control

Once the machining process is complete, the part is inspected to ensure it meets the required specifications. Any necessary finishing operations, such as deburring or polishing, are performed to improve the part’s surface finish and eliminate sharp edges.

6. Part Removal and Final Inspection

The part is removed from the lathe, and a final inspection is performed to ensure it meets the design requirements. Any additional operations, such as heat treatment or coating, may be carried out at this stage.

What Industries Benefit from Step Turning?

Step turning is widely used across several industries that require precision, complex geometries, and high-quality parts. Some of the key industries that benefit from step turning include:

1. Aerospace

The aerospace industry demands parts that are not only lightweight but also extremely strong and durable. Step turning is used to create complex parts like shafts, spacers, and bushings, which are critical to ensuring the safety and performance of aircraft. These parts often require tight tolerances and must withstand high levels of stress and fatigue.

2. Automotive

Automotive manufacturers rely on step turning to produce high-precision components like transmission shafts, camshafts, and brake components. Step turning allows for the creation of parts with multiple features in one cycle, reducing lead times and ensuring that parts meet the exact specifications required for automotive applications.

3. Medical Devices

In the medical industry, precision is paramount. Step turning is used to create parts like surgical instruments, implantable devices, and diagnostic equipment. These parts must meet stringent quality standards, and step turning provides the necessary precision to ensure reliability and safety in medical applications.

4. Energy and Oil & Gas

Step turning is widely used in the production of components for the energy and oil and gas industries, such as valve stems, couplings, and downhole tools. These parts must be able to withstand extreme pressure, temperature, and corrosion, making step turning an ideal process for manufacturing high-strength, durable components.

5. Defense and Military

The defense and military sectors require parts that are not only precise but also capable of withstanding harsh environments. Step turning is used to manufacture parts such as missile components, firearm parts, and military vehicle components, where accuracy, strength, and durability are critical.

How Can You Optimize Your Step Turning Process?

To maximize the benefits of step turning, manufacturers should focus on optimizing the following aspects of the process:

1. Tool Selection

Choosing the right cutting tools is crucial for achieving high-quality results and minimizing tool wear. Selecting tools with the correct geometry, material, and coating will help improve tool life and reduce the risk of defects.

2. Cutting Parameters

Optimizing cutting parameters such as cutting speed, feed rate, and depth of cut can significantly affect the quality of the part and the efficiency of the machining process. Properly calibrated CNC programs will help achieve the best balance between speed, surface finish, and tool life.

3. Material Selection

The choice of material has a significant impact on the step-turning process. Some materials, like stainless steel and titanium, may require slower cutting speeds and higher cooling rates due to their hardness. Proper material selection ensures that the parts can be machined to the desired specifications while minimizing tool wear and cycle time.

4. Quality Control

Implementing stringent quality control procedures throughout the machining process helps ensure that each part meets the required tolerances and specifications. Regular inspection using tools like CMM (Coordinate Measuring Machines) or vision systems can help identify defects early in the process, reducing the need for costly rework.

How Can Ares Precision Support Your Step Turning Projects?

At Ares Precision, we specialize in providing high-precision step-turning services to meet the exact requirements of our clients across various industries. Our state-of-the-art CNC turning machines and expert team ensure that each part is machined with the utmost accuracy and attention to detail. Whether you need high-volume production or prototype development, Ares Precision can help bring your designs to life with superior quality, efficiency, and cost-effectiveness.

Contact us today to discuss your next step-turning project and learn how we can help you achieve the precision and reliability your industry demands.
