In the manufacturing industry, “precision machining” and “CNC machining” are two high-frequency terms, but the specific differences between the two are often confused. A deep understanding of the differences between them is particularly important for choosing the right machining method. Below we will conduct a detailed analysis from multiple dimensions:
1. Definition and core essence
● Precision machining: The core is the word “precision”. Generally refers to a series of special processes and technology combinations designed to achieve extremely high dimensional accuracy and excellent surface quality (such as extremely low roughness). Its goal is to meet strict requirements for standard tolerances, geometric accuracy and surface smoothness. In essence, precision machining is the pursuit of the limit of dimensional accuracy, which can be achieved through various traditional or modern methods (such as precision cutting, cutting, grinding, ultra-precision machining, etc.).
● CNC machining (computer numerical control machining): The core lies in “computer numerical control”. It is an automatic machining method that accurately controls the tool movement and machining process of the machine tool through a pre-written digital program (G code, etc.). After the CNC code machining instructions are input into the machine tool control system, the machine tool can automatically perform complex machining tasks. Its core value lies in the efficient and consistent realization of high-precision machining of complex parts.
2. Level of accuracy
● Precision machining: Generally, the pursuit of micron-level (μm) or even submicron and nanometer-level accuracy is also very high. It is mainly used in aerospace engineering, optical equipment, precision sensors and other fields with extremely strict accuracy levels.
● CNC machining: The accuracy range is wide, starting from millimeter level (mm) to micron level (μm), depending on the accuracy level of the machine tool itself, control system, tool, programming and operation level. Modern high-precision CNC machine tools (such as precision machining centers) can also smoothly achieve micron accuracy. The significant advantage of CNC is its excellent repeatability and dimensional consistency, which is very suitable for mass production.
3. Equipment and technical features
● Precision machining: Relying on specially designed high-precision equipment such as precision grinders, coordinate grinders, diamond lathes, and ultra-precision machine tools. These equipment usually have strict requirements on the environment (constant temperature, humidity control, low vibration, cleanliness), and can use special processing techniques (such as mirror cutting, ultra-precision cutting, electrolytic polishing, etc.) to achieve extreme accuracy.

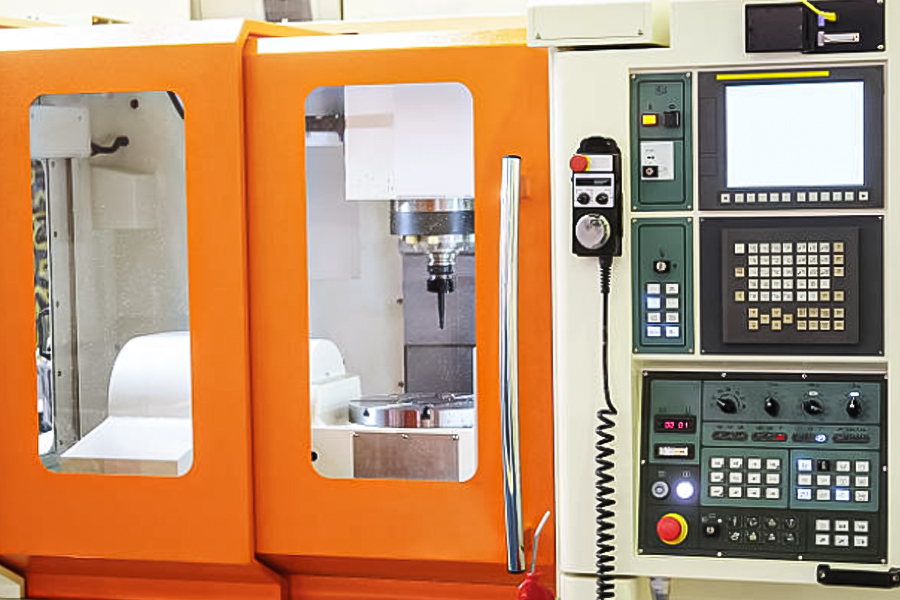

● CNC machining: The core equipment is CNC machine tools (such as CNC lathes, CNC milling machines, machining centers). They integrate advanced technologies such as computer control, servo drive, precision sensors, and automatic tool change. Its core feature is high flexibility: by changing the processing program, the same machine tool can quickly adapt to the processing of different parts, especially suitable for multi-variety, small and medium-sized batch production. The CNC system can also monitor and optimize processing parameters (such as rate, feed, cutting depth) in real time.
4. Processing range and flexibility
● Precision machining: Due to the ultimate pursuit of precision, the processing range is usually relatively concentrated on parts with high precision and high surface quality requirements, usually involving small batches or single-piece production. For extremely complex or special material parts, it may be necessary to combine various precision processes to achieve.
● CNC machining: The processing range is very wide. Due to its powerful programming capabilities, CNC can not only effectively process parts with simple geometric structures, but also easily process parts with complex surfaces, three-dimensional cavities, deep holes, etc. Its high flexibility enables it to respond quickly to different engineering changes and production tasks, and has strong adaptability.
5. Automation level
● CNC machining: The automation level is very high. From program input to machining execution, tool change (machining center), and even workpiece fixtures (with automation system), the whole process can be highly automated, with low manual control requirements. This greatly reduces human deviation and improves production efficiency and consistency.
● Precision machining: Although automated machinery (such as CNC precision grinders) is used, some important links (such as precision tooling adjustment, special tool repair, ultra-precision manual polishing, high-precision online/offline inspection) usually still require experienced technicians to intervene when pursuing the highest precision limit. The overall automation level is generally lower than that of standard CNC mass production.
Typical application areas
1. Precision machining: The core is used in areas with strict standards for precision, such as:
● Aerospace engineering (engine blades, precision bearings, gyroscope components)
● Optical equipment (lenses, prisms, laser reflectors)
● Semiconductor manufacturing equipment parts
● High-precision medical devices (implant core components)
● Precision measuring instruments
2. CNC machining: The application range is extremely wide, penetrating almost all manufacturing industries:
● General machinery manufacturing
● Automotive parts (engine cylinder block, gearbox housing, complex bracket)
● Consumer electronics (housing, connector, radiator)
● Mold manufacturing (injection mold, die-casting mold, stamping mold)
● Energy equipment components
And many parts in the above-mentioned precision machining fields (when using high-precision CNC products).
Precision machining and CNC machining are not mutually exclusive concepts. CNC is a powerful and mainstream technical means to achieve precision machining (high-precision CNC machine tools), while precision machining represents a higher level of requirements for machining results (precision, surface quality). The core difference between the two is:
● Precision machining: The accuracy level and surface quality target of the machining results can be achieved through various technologies (including CNC).
● CNC machining: More emphasis is placed on the automatic machining method of computer numerical control itself, and its accuracy potential depends on the equipment level process setting, which can cover a wide range from traditional to precision.
In actual production, the choice depends on factors such as the specific accuracy level, complexity, batch size, cost budget, etc. of the parts. CNC is the first choice for efficient and flexible machining of conventional precision or complex shapes. For parts with extreme requirements such as ultra-precision and ultra-smooth surfaces, special precision machining technology or a combination of high-precision CNC technology is required.
